PRODUCT DESCRIPTION

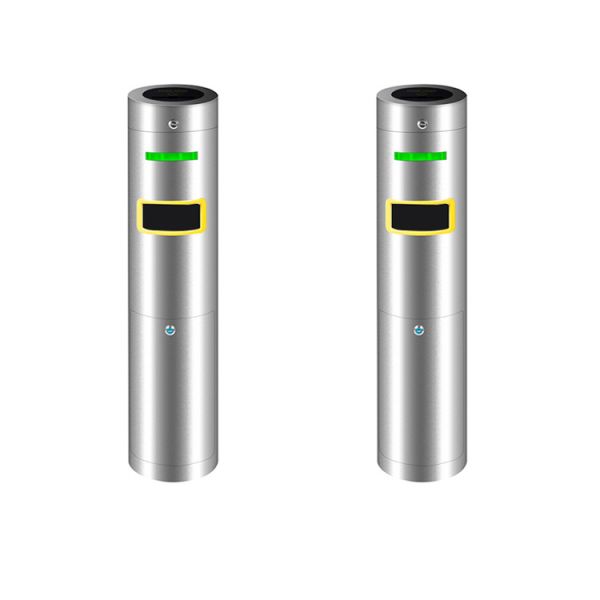

DBX100 is a vertical card collector dropbox typically installed beside a pedestrian gate with an access control reader for the visitor to check out their card on the way out of the building. The wide opening of DBX100 can accept thick cardholders with clips compared to others that can only accept thin proximity cards.
Does your visitor feel troublesome that they need to queue up again just to return the access card before they can exit the building? More often they forgot about it and just go out with the access card. What if you can ensure all cards are collected back and make your visitor exit experience to be more convenient at the same time?
Auto-check out
You can install an access reader inside DBX100 and link it to Visitor Management Software. The visitor just needs to drop their visitor card into DBX100 and the card will automatically check out by the software after the reader confirmed a valid card to open the gate. Valid visitor cards will fall into the collection bin inside. The invalid card will fall out to the exit tray at the front.
Any cards are accepted
Most other can only accept thin proximity card (0.84 mm). DBX100 can accept a proximity card together with its holder and pin clip. DBX100 can accept the card with a maximum of 10 cm wide.
Easy maintenance
You can open up the top cover for maintenance purposes. The bottom door can be opened by key to take out the collection bin once it is full. Once the collection bin is full, all cards (valid/invalid) card will fall out to the exit tray. DBX100 will not accept any more cards until the collection bin is cleared. There is an indicator light to show operation status.
PRODUCT Application:
Dropbox is suitable for indoor application only. It is NOT suitable to be installed outdoor or near sea side.
PRODUCT SPECIFICATION
| Description | Parameter |
| Power supply | AC230 power input
Built in DC12V power supply |
| Power consumption | Idle : AC 0.04A, DC 0.01A
Operation : AC 0.28A , DC 4.71- 4.74A |
| Indicated light | Blue : Power On
Green : Valid card
Red : Dropbox fully occupied |
Collection bin
dimension | 13.5 x 13.5 x 29 cm
Can contain maximum 280 cards |
Maximum
card size | 10 (W) x 9 (H) cm
|
MAIN FUNCTION AND FEATURES
- DBX100 can accept card with maximum 10 cm wide
- Any brand access control reader can be installed inside the dropbox. Once reader verified a valid card, reader shall trigger dropbox to accept the card. Accepted card will fall into collection bin at bottom.
- There is indication light to show operation status.
- Top cover can be opened by key for maintenance purposes.
- Bottom door can be opened by key to take out collection bin once it is full. Once collection bin is full, all cards (valid/invalid) card will fall out to the exit tray. DBX100 will not accept any more cards until the collection bin is cleared.
- DBX100 also can be used for ticketing application. Visitor can purchase entrance fees and be given a proximity card. Visitor drop the proximity card into dropbox to trigger gate to open. Operator collects all ticket (proximity card) back to ticket counter once the collection bin is full. Operator can reuse the proximity card again for next visitor.
