10ms Reaction Single Channel Loop Coil Vehicle Detector For Car Parking System

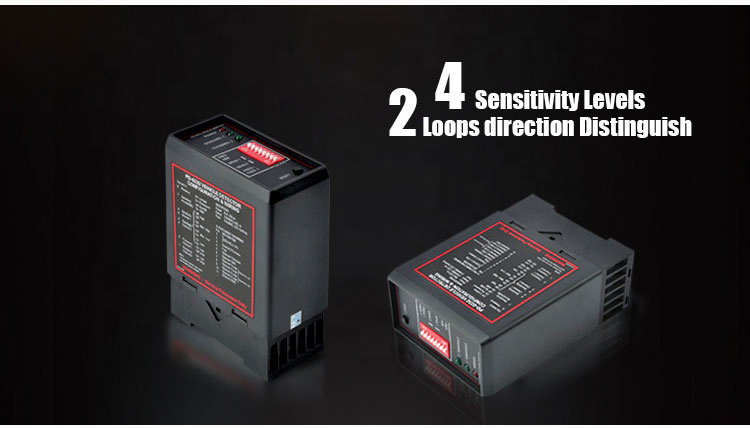

PD132 Traffic Inductive Single Channel Loop Coil Vehicle Detector For Car Parking System

PD132 loop detector Selling point

• Two-way output relays
• Lightning and surge protection
• Two high intensity LED indicators
• 4 grades sensitivity adjustable - gives the user the ability to select the best sensitivity level
• 4 frequency settings provide flexibility in preventing crosstalk in multi-loop applications.
• Large loop inductance range from 50μH to 1000μH

Application

Counting vehicles
Parking guidance system
Automatic door
Gate drive mechanisms,
Operating barriers
Activating card dispensers in parking lots
Traffic Light System

1) Reset Switch : The reset switch enables the detector to be manually reset during registering and testing and it is a process of system recovery;

2) Selectable Pulse Time : This feature sets the length of time that the pulse relay will be lasting for 1 Second or 0.5 Seconds ;

3) Pulse Relay Selection : The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop;

4) Sensitivity Reinforcement : This feature sets the un-detecting level to a maximum sensitivity to prevent failing to detect vehicles as big trucks;

5) Switch Sensibility Adjustable : 4 sensitivity setting are available on the switches to change sensitivity ;

6) Switch Frequency Adjustable : 4 frequency settings are available to prevent signal interference with neighboring loops ;

7) Filtering Option : This option is used to provide a delay between detection of the vehicle and switching of the output relay . This relay is normally used to prevent false detection of small or fast moving objects ;

8) Permanent Presence Option : This feature ensures the detection of the vehicle will be maintained when the vehicle stays within the loop area for extended periods

Technical parameters of Loop Detector
